Luxpower 5KVA Inverter and Battery Combo Dyness 4.8KW Lithium Battery

 Luxpower 5KVA Inverter and Battery Combo Dyness 4.8KW Lithium Battery + 6X 360W Solar Panels

Luxpower 5KVA Inverter and Battery Combo Dyness 4.8KW Lithium Battery + 6X 360W Solar Panels

Save R 3,050.00

Original priceR 35,000.00

Current priceR 31,950.00

Availability:

in stock, ready to be shipped

Select addons

Solar Installation Kit for 6 Solar Panels, Inverter and Battery

R6,950.00

Add to cart

Buy it now

Available Online & In-Store, Pay on Collection

Delivery Estimate 1-2 Business Days

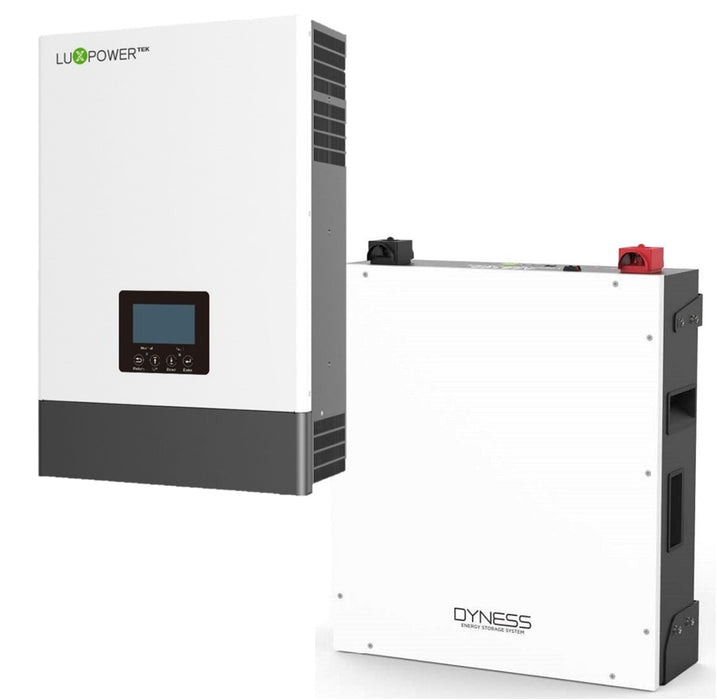

Luxpower 5KVA Inverter and Battery Combo Dyness 4.8KW Lithium Battery + 6X 360W Solar Panels

LuxPower 5kW Inverter – SNA5000 Hybrid Inverter

The Solar Select LuxPower SNA 5000 is one of the best off-grid inverters on the market. This inverter meets all the requirements we feel is important in an inverter of this type. With two high voltage MPPTs and a max PV input of 6000 Watts, compatibility to communicate with a wide range of lithium batteries, and full off-site monitoring via an App it is hard to beat this unit at this price point.


Key Features

• Intelligent Off-Grid & Hybrid modes
• PV and AC Power can power loads simultaneously
• 2 x MPPTs with a wide input voltage range.
• BMS communication to most leading brands of Batteries (See List)
• Free monitoring via the app and remote upgrades.
• Single or unbalanced three phase
• Parallel up to 10 units.
• Independent generator interface.

PV INPUT:
Normal operating voltage:240Vdc Vmax PV:500Vdc
PV input voltage range:90-500Vdc Imax PV:27A
Full load MPPT range: 240-450Vdc Rated Power 6200W
Maximum Solar Charging Current:120A
GRID/AC OUTPUT:
Normal Output Voltage:220/230/240Vac Feed-in Grid Voltage Range:195-253Vac Feed-in Grid Frequency Range: 49-51+1Hz
Normal Output Curren: 15.7A
Power Factor Range: >0.99
Maximum Conversion Efficiency (DC/AC) :97%
Normal Operating Frequency: 50/60Hz
TWO LOAD OUTPUT POWER:
Full Load:3600W
Maximum Main load:3600W Maximum Second load: 1200W Main load cut off voltage:22Vdc Main load return voltage:26Vdc AC INPUT:
Normal operating voltage:230Vac Maximum input current:30A
Normal operating frequency:50/60Hz
Surge power:7200VA
Maximum AC charging current:100A
Battery voltage range: 20-33Vdc
Maximum battery current: 150A

What's in the box


1 x Inverter
1 x User Manual
1 x Wifi Dongle

Battery Specifications:

Dyness Lithium Battery A48100 (48V100AH 4.8KWH)

Introducing the Dyness A48100, a breakthrough in renewable energy storage. The A48100 is a 4.8kWh Lithium-ion Battery Module pack that’s engineered for remarkable reliability and performance. With a built-in Battery Management System (BMS) that safeguards against overcharging, over-discharging, and short circuits, this powerhouse of a battery delivers continuous 48V output power. Say hello to energy independence with the Dyness A48100.

A Revolution in Renewable Energy

The Dyness A48100 isn’t just a battery; it’s a gateway to a greener, more sustainable future. Designed to partner seamlessly with renewable energy sources like solar panels, this lithium battery stores the electricity generated during the day and makes it available when you need it most. No more reliance on the National Grid – with the Dyness A48100, you’re in control of your power.

Efficiency Meets Portability

The A48100 is not only powerful but also practical. It’s lightweight and occupies minimal space, making it perfect for projects that require easy transport and minimal installation space. You won’t find a more compact and portable energy storage solution anywhere else.

LITHIUM BATTERY – Specifications:

• Voltage: 48V
• Nominal Capacity: 100Ah
• Rated Energy: 4,800Wh
• Cycle Life: 6,000 Cycles (25°C, 0.5C Rate, 90% DOD, EOL 60%)
• Rated Discharge Current: 30A
• Maximum Continuous Discharge Current: 100A
• Maximum Discharge Current: 120A (3S)
• Rated Charging Current: 30A
• Maximum Continuous Charging Current: 100A
• Lower Limit of Discharge Voltage: 42±0.1V
• Operating Temperature:
  • Recharge: 0°C to +55°C
  • Discharge: -20°C to +55°C
• Working Humidity: 5% to 85% RH
• Storage Temperature: -10°C to +35°C

(Courier for panels are at your own risk)

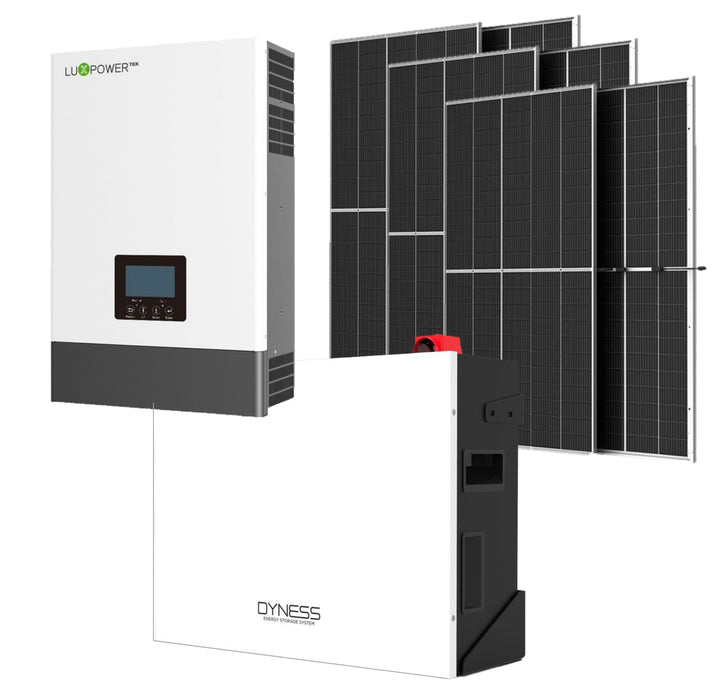

 Combo includes:

• 1x Dyness Lithium Battery A48100 (48V100AH 4.8KWH) (10-year warranty)
• 1x Luxpower 5kw + Wifi Dongle Inverter (2 year warranty)
• 6x 360W Mono Solar Panel NB-M360W Sun God
• Battery Cables And Brackets Included

(Courier for panels are at your own risk)
